LC-PCIE1608 - PCI-E to 8 Port RS422/485 Low Profile Card

Feature

• PCIe 2.0 Gen 1 compliant
• x1 Link, dual simplex, 25Gbps in each direction
• RS485 signals: DATA+ (B), DATA- (A), GND
• RS422 signal: T/R+, T/R-, RXD+, RXD-, GND
• Working mode: asynchronous working、point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
• Transmission distance: RS-485/422 port:1.2km (300bps-921600bps)
• Transmission media: twisted-pair cable or shielded cable
• Direction control: Adopt the technology which automatically controls the data-flow direction、automatically distinguish and control the data-transmission direction;
• UART interface support for 7 or 8 data bits,1 or 2 stop bits and
• even/odd/mark/space/none

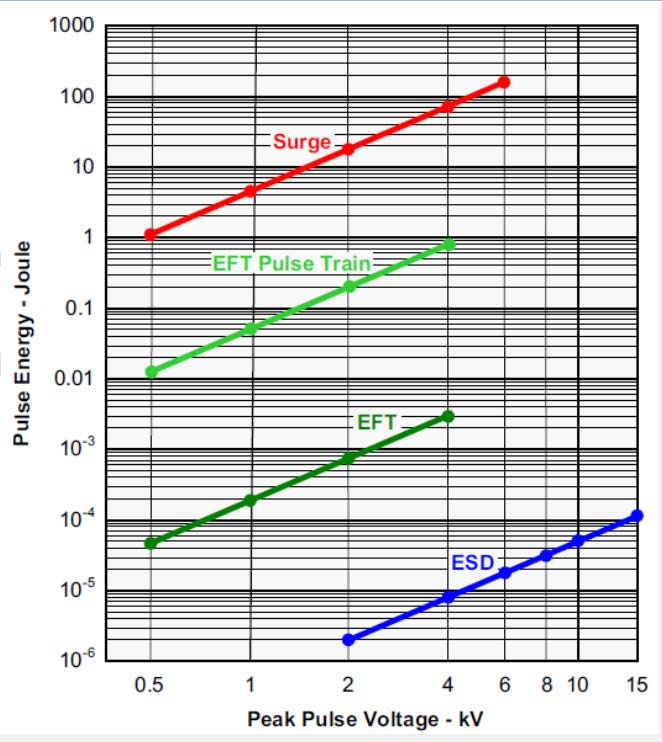

• Interface protection:TVS on each signal of RS42/485 port - for the protection of
• 400W Voltage Surge and +/-20kV ESD

• Flow control none,hardware and xon/xoff

• Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment

• Extended operating temperature range; -40 to 85⁰C

Specification

Accessorie

•  1 x RS422/485 8-Port PCIe Card

• 1 x Driver CD

• 1 x User Manual

• 1 x Low Profile bracket

• 1 x VHDCI68 to 8x DB9 Cable

Note: Contents may vary depending on country/market
